Teac TN-400BT-X Bluetooth Turntable Walnut

Introducing the Teac TN-400BT-X Bluetooth Turntable in Walnut – Elevate Your Vinyl Experience

Discover the TN-400BT-X, a cutting-edge analog turntable that seamlessly combines traditional vinyl playback with modern Bluetooth technology, offering a unique and versatile audio experience.

Wireless Vinyl Playback

Experience the freedom of wireless vinyl listening with the TN-400BT-X. Connect effortlessly to Bluetooth® headphones and speakers, allowing you to enjoy your LP records without the constraints of wires. The built-in Bluetooth® transmitter supports high-quality audio through aptX® and AAC codecs, delivering an immersive listening experience.

Precision Rotational Speed

The TN-400BT-X features an aluminum die-cast platter with a 3-speed belt drive system (33 1/3, 45, and 78 rpm). The high torque DC motor, coupled with a low-resistance spindle made of stainless steel, ensures accurate rotational speed and reduced friction for stable playback.

Phono EQ Amplifier

Equipped with a built-in Phono EQ amplifier, the TN-400BT-X supports MM-type cartridges, enabling seamless connection to conventional hi-fi amplifiers or micro hi-fi systems. The amplifier utilizes a high-quality NJM8080 op-amp chip, designed by JRC, delivering minimal distortion for a pristine audio signal.

Subsonic Filter for Enhanced Sound

Enhance your audio experience with the TN-400BT-X's new subsonic filter, effectively eliminating frequencies below 18Hz. This feature prevents excess LF signal levels, ensuring a smoother electrical load to connected speakers, particularly beneficial when playing warped vinyl records.

S-shaped Static Balanced Tone Arm

Enjoy precise tracking during playback with the S-shaped, static-balanced aluminum tone arm. The counterweight and anti-skating mechanism allow for exact balance and tracking pressure settings. The universal type headshell facilitates easy cartridge changes, while gold-plated contact points minimize signal losses for an uncorrupted audio signal.

Bluetooth® Wireless Audio Streaming

Immerse yourself in high-quality wireless audio streaming using the TN-400BT-X's Bluetooth® transmission system. Support for aptX® and AAC codecs, along with a user-friendly single function-pairing key, ensures a seamless connection to Bluetooth® headphones or speakers.

Elegant Design

The TN-400BT-X boasts a visually stunning design with machined aluminum operation knobs and aluminum feet attached to a high-density MDF chassis. Shock-absorbing rubber provides high resistance to feedback, enhancing the overall aesthetic appeal of your vinyl playback experience.

Premium MM-type Cartridge

Included with the TN-400BT-X is an exceptional MM-type cartridge from audio-technica. Featuring a lightweight aluminum cantilever, this cartridge delivers accurate and highly musical playback, elevating your vinyl listening experience.

Transform your vinyl playback journey with the Teac TN-400BT-X – where timeless tradition meets modern innovation.

Features at a glance

Robust high-density MDF plinth provides both vibration isolation and elegance
3-speed belt drive mechanism with aluminum die-cast platter (33 1/3, 45, 78 rpm)
Newly-developed low-resistance spindle for stable rotational speed
Static balanced S-shaped tone-arm with universal-type headshell
Pre-installed MM-type AT95E cartridge from audio technica
Built-in Phono EQ Amplifier with subsonic filter (off when THRU)
High-quality Bluetooth® aptX® wireless audio transmission
Floating construction using decoupled feet provides high feedback resistance
Machined aluminum operation knobs and feet
Gold-plated RCA jacks (for LINE/PHONO output) and tone-arm contacts

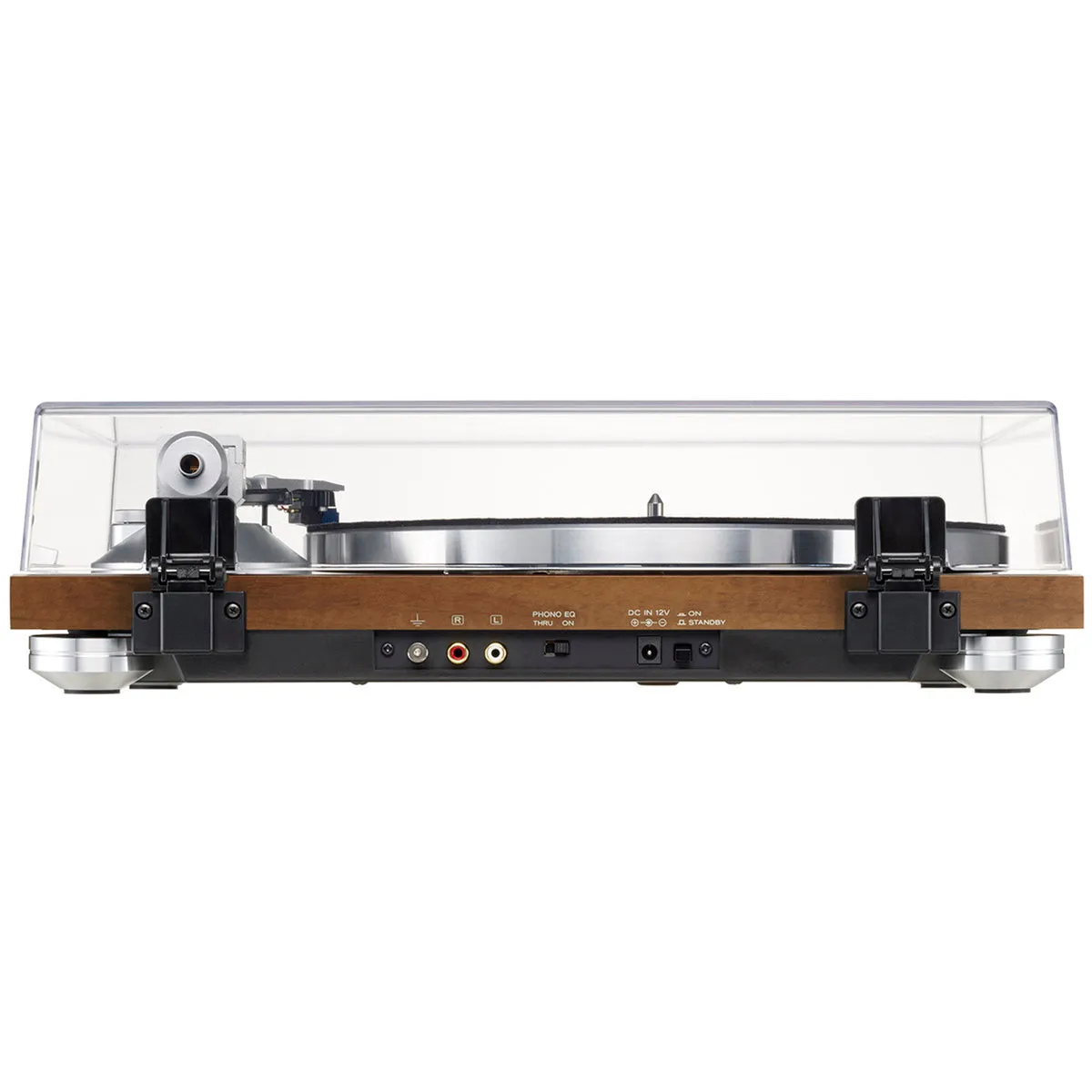

GND terminal on the rear panel
RCA audio cable with GND wiring included

Included accessories

Felt Mat
EP Adapter
Counter Weight
Headshell (audio technica AT95E installed)
Platter
Dust Cover
Dust Cover Hinges x 2
RCA Audio Cable with GND wiring
AC Adapter (GPE053A-V120050-Z)
Owner’s Manual (including Warranty Card)

Tech Specs

Turntable section
- Type: Belt Drive
- Motor: DC Motor
- Rotation Speeds: 33-⅓, 45, 78 rpm
- Wow-and-Flutters: 0.2%
- S/N Ratio: more than 67dB (A-weighted), 60dB (unweighted, 20kHz, LPF)
-Turntable (Platter): Material: Aluminum Die-cast Diameter: 30cm
Tone-arm section
- Type: S-shaped, Static-balanced
- Effective Length: 223mm
- Needle Pressure Range: 0g to 5g
- Compatible Cartridge Weight: 4g to 8g, 14g to 18g (including Head-shell)
Head-shell and Cartridge sections
- Model of Cartridge: audio-technica AT95E
- Type of Cartridge: MM-type (VM-type)
- Frequency Response: 20Hz to 20,000Hz
- Output Voltage: 3.5mV (1kHz, 5cm/sec.)
- Channel Separation: 20dB (1kHz)
- Output Balance: 2.0 dB (1kHz)
- Needle Pressure: 1.5g to 2.5g (appropriate value: 2.0g)
- Needle Life: approx. 300 hours (depends on conditions)
- Coil Impedance: 2.8kohms (1kHz)
- DC Resistance: 410ohms
- Loading Resistance: 47kohms
- Loading Capacity: 100 to 200pF
- Coil Inductance: 400mH (1kHz)
- Static Compliance: 20 x 10-6cm/dyne
- Dynamic Compliance: 6.5 x 10-6cm/dyne (100Hz)
- Needle Shape: Joint-oval 0.3 x 0.7mil
- Cantilever: Aluminum Pipe
- Vertical Tracking Degree: 20 degrees
- Overall Dimensions: 17.0(W) x 17.2(H) x 30.5(D) mm
- Weight: 5.7g
- Head-shell Weight: 10g (including nuts, screws, and wires)
Analogue Output section
- Connectors: RCA jack x 1 pair (Gold-plated)
- Output Voltage: PHONO: 3.5mV /-3dB, LINE: 155mV (-16dBV)
Bluetooth® section
- Bluetooth version: 4.0 (DUAL MODE)
- Output class: Class 2
- Codecs: SBC, AAC, Qualcomm® aptX™
- Maximum number of stored pairings: 8
Operation Power
- AC Adapter Input: AC 100 - 240V, 50/60Hz
- AC Adapter Output: DC 12V 500mA
General
- Power Consumption: 1.5W or less
- Standby Power: 0.5W or less
- Dimensions (including protrusions) : 420(W) x 117(H) x 356(D) mm / 16.5"(W) x 4.6"(H) x 14.0"(D)
- Weight: 4.9kg / 10.8lbs
- Operating temperature range: 5°C to 35°C
- Included Accessories: Felt Mat, EP Adapter, Counter Weight, Headshell (audio-technica AT95E installed), Platter, Dust Cover, Dust Cover Hinges x 2, RCA Audio Cable with GND wiring, AC Adapter (GPE053A-V120050-Z), Owner's Manual (including Warranty Card).
