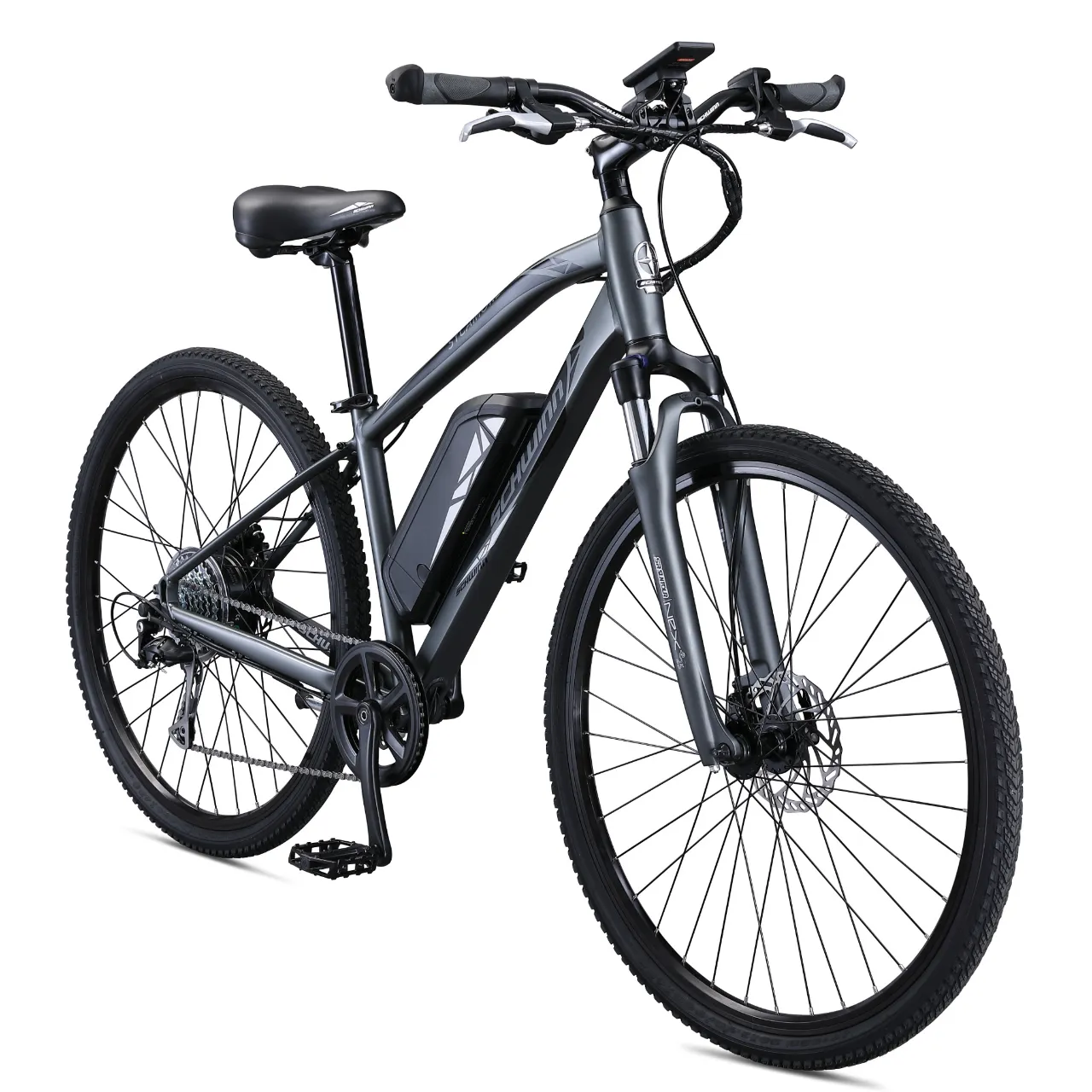

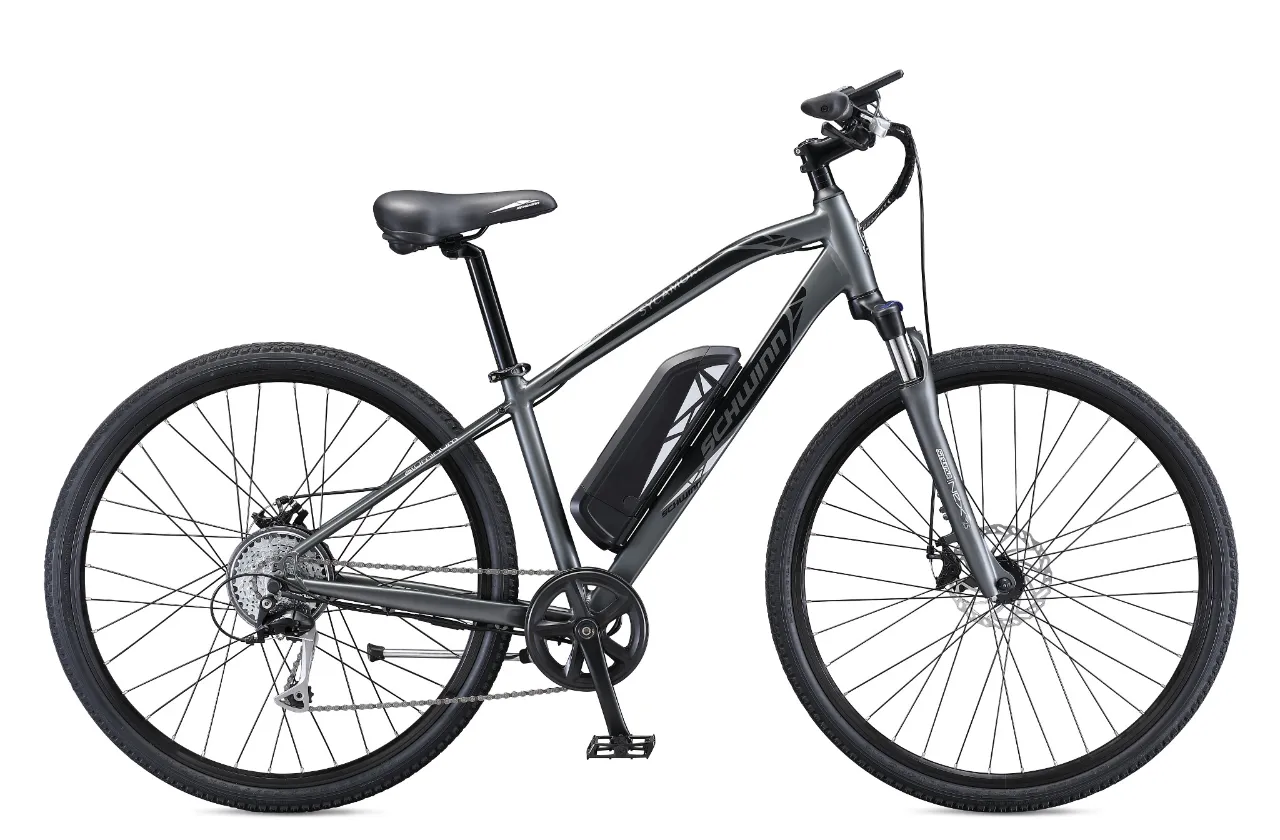

If riding an eBike is a new adventure for you, then the Schwinn Sycamore is the perfect way to get started. The 700c Men's Sycamore sport hybrid electric bike has a 350-watt hub-drive motor with a thumbpad controller on the handlebar. With an LCD display showing battery life, assistance level, and basic cycling computer features, you can use the thumbpad to completely control your ride. There are five different levels of pedal-assist for you to choose from, which offer e-assistance up to 20 miles per hour. Good luck beating the versatility of this stylish sport hybrid e-bike.
| Frame: | Schwinn Alloy Dual Sport 700 |
|---|---|
| Fork: | SR Suntour® NEX E25 with 63 mm travel and Hydraulic lockout |
| Wheels: | J19-HR double wall 36H with stainless steel eyelets, 700 |
| Hubs: | Alloy QR disc 36H(F), Bafang G020 350W hub drive motor 36H cassette(R) |
| Headset: | Threadless, 1 1/8" |
| Handlebar: | Schwinn® alloy low rise, 25.4, 620mm width |
| Grips: | Schwinn Ergo comfort |
| Chainring / Crank: | Alloy 3pc with 46T chainring |
| Brakes: | Alloy mechanical disc, 160 mm rotors |
|---|---|
| Bottom Bracket: | Sealed Cartridge w/ integrated speed sensor |
| Tires: | Innova 700x45 eBike specific with puncture protection |
| Pedals: | VP alloy platform |
| Seatpost: | Schwinn® trail MTB alloy, 27.2 x 350 mm |
| Saddle: | Schwinn comfort |
| Shifters: | Shimano M310 Altus Rapid Fire® rear only |
| Battery: | Lithium Ion 14Ah (500Wh) |
| Motor: | Bafang geared brushless 350W motor, single speed |
| Display: | LCD Display |
All bikes purchased through City Grounds MUST be assembled by a certified bike shop mechanic. If the bike is NOT built by a certified bike shop mechanic, any warranty will be VOID. We will request for an assembly receipt as proof of professional installation.
For all warranty claims, please contact our Warranty Team at . So that we can help you in a timely manner, make sure to include the following:
- 1. Order Number (we will confirm date of purchase and determine if the item is still under the manufacturer’s warranty time limit)
- 2. Brief description of the claim
- 3. Photographs
- 4. If the item is a bike or frame, include the serial number
We evaluate all warranties case-by-case to determine the best course of action and get you serviced to the best of our ability!
Warranty does not apply to the following:
- • Any part of a product that has been installed, altered, repaired, or misused
- • Damage from unintended style of riding, abuse, neglect, accident, and racing
- • Normal wear and tear of any product (including but not limited to - saddles, grips, tires, tubes, cables, brake pads, chains)
- • Failure to provide regular maintenance of any product
Labor and shipping are the responsibility of the customer. We do not cover parts purchased and labor performed by another bike shop.
Note: Warranty is for original owner only.
