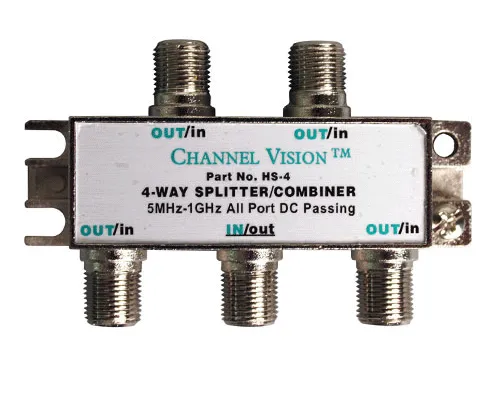

Channel Visoin HS-4 4-Way Splitter/Combiner

The Channel Vision HS-4 splitter/comniner allows 4-way combining or splitting of TV antenna or cable signals. This splitter is DC passive allowing passage of low-voltage signals along the coax cable. This splitter is housed in a high quality casting.

Features:

4-Way Splitter / Combiner
1 GHz, DC pass all ports
Bulk pack-poly bag
7.0dB insertion loss
Machine threads
Grounding screw

Technical Specifications

Bandwidth: = 5-1000MHz
Insertion loss: = 7.5dB
Max insertion loss @ 1GHz = 8.5dB
RFI isolation: -120dB
Return loss: >16dB
Out to out isolation: >18.5dB
DC resistance OUTPUT to IN: <.1ohms>
Input/Output Connectors = F type female
Max DC pass thru current: 500 mA
