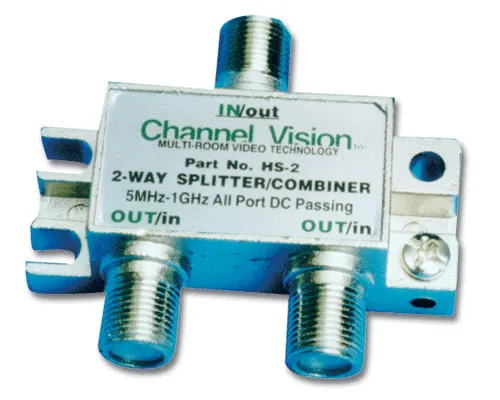

Channel Vision HS-2 2-Way Splitter/Combiner

The Channel Vision HS-2 splitter/comniner allows 2-way combining or splitting of TV antenna or cable signals. This splitter is DC passive allowing passage of low-voltage signals along the coax cable. This splitter is housed in a high quality casting.

Features:

• 2-Way Splitter / Combiner
• 1 GHz, DC pass all ports
• Bulk pack-poly bag
• 3.5dB insertion loss
• Machine threads
• Grounding screw

Technical Specifications

• Bandwidth: = 5-1000MHz
• Insertion loss: = 3.5dB
• Max insertion loss @ 1GHz = 4.5dB
• RFI isolation: -120dB
• Return loss: >17dB
• Out to out isolation: >19dB
• DC resistance OUTPUT to IN: <1ohms
• Input/Output Connectors = F type female
• Max DC pass thru current: 500 mA
