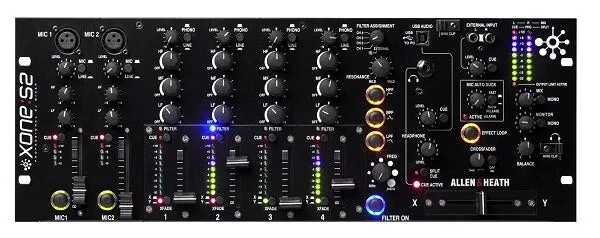

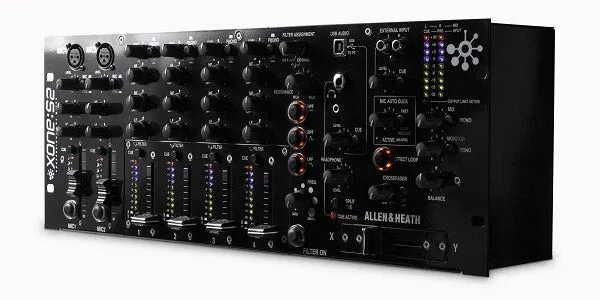

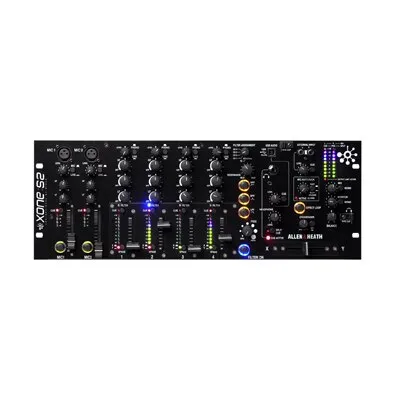

:S2 is a new analogue installation for use in clubs and bars, and by professional mobile DJ’s. It’s a 19” rack-mount 4U featuring 4 stereo dual-input channels, 2 mono mic/stereo line channels, with rotary VCA channel faders, along with the legendary Xone analogue filter and a host of other functions.
Uniquely, a USB audio interface is provided, enabling easy integration of digital media. The USB interface can be used for playback and to or from the Xone:S2 anda computer, or used with software to act like a hardware effects unit.
The :S2 represents the ideal package for club installers, with many features designed to integrate it into a typical PA system, including an output limiter system that enables the installer to preset the maximum output level of the . A dedicated alarm input mutes all music channels, and an alarm message audio input connection is provided. An additional stereo input (RCA) is accessible on the front panel - enabling guest DJs to patch in additional music sources.
Xone:S2 Features:
- 4 stereo dual input channels with 3 band equalizer
- Analogue filter section with filter type, frequency, and resonancecontrols
- 2 Mono Mic/Stereo Line channels with 2 band EQ. XLR sockets at front foreasy Mic connection
- Extensive channel and output metering
- Mic auto ducking control, with adjustable depth and release
- Assignable crossfader with scratch/mix curve control
- Soft switched global effects loop
- External line input with level and cue
- 5 outputs: Main mix (balanced XLR); Monitor/booth (RCA); Remote zone(balanced TRS jack); Mono/sub (XLR) and record (RCA); Lighting controlleraudio feed
- Remote level control for Zone output (0-10V)
- USB audio interface for computer-based file replay/Recording software/FX
- CD fader starts on each music channel
- Recessed level trims on back for music channels
- Adjustable output level limiter
- Alarm input override ducks all music channels
- Dedicated alarm message audio input
- Universal input voltage internal power supply
- Linear channel fader model also available
