• Output: DC Constant Voltage
• Range AC input/: 180-240v AC
• Efficiency: up to 85%
• Protections: short circuit/over loading/over current
• Full protection plastic housing easy installation
• IP20 design for indoor installation
• Cooling by free air convection
• Work with leading edge and trailing edge TRIAC dimmers
• Strong compatibility, flicker-free dimming
• Complete with Flex and Plug

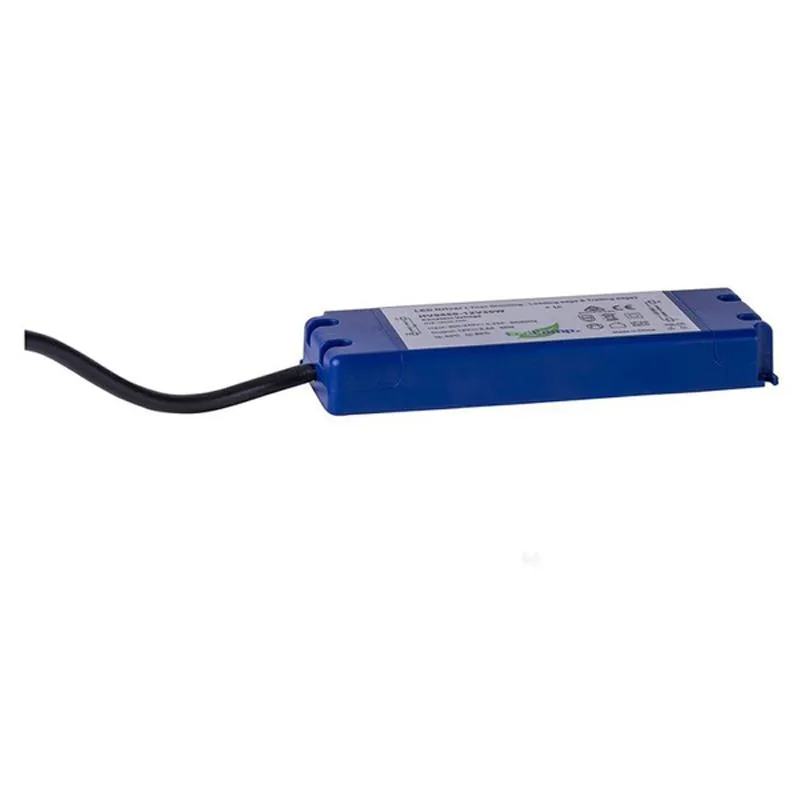

• Triac dimmable LED driver
• Dimmable using HV9625
• Complete with Flex and Plug
• IP20 (Indoor use only)
• Input voltage: 240v AC
• Output voltage: 12V DC | 24v DC
• Output power: 30W
• Minimum Load: 40%
• Maximum Load: 85%
• 2 years replacement warranty

• Length: 180mm
• Width: 60mm
• Height: 35mm

Order Code:

• HV9660-12V30W - 12v 30w

• HV9660-24V30W - 24v 30w
