Product Details
＋
Features:
- Output: DC Constant Voltage
- Range AC input/: 200-240vAC
- Built-in active PFC function
- Efficiency: up to 90%
- Protections: short circuit/over loading/over temperature
- Full protection aluminium housing easy installation
- IP66 design for outdoor installation
- Cooling by free air convection
- Work with leading edge and trailing edge TRIAC dimmers
- Strong compatibility, flicker-free dimming
- Complete with Flex and Plug
- Triac dimmable LED driver
- Dimmable using HV9625
- Complete with Flex and Plug
- IP66 (Outdoor use)
- Input voltage: 240v AC
- Output voltage: 12v DC | 24v DC
- Output power: 150w
- Minimum Load: 40%
- Maximum Load: 85%
- 2 years replacement warranty

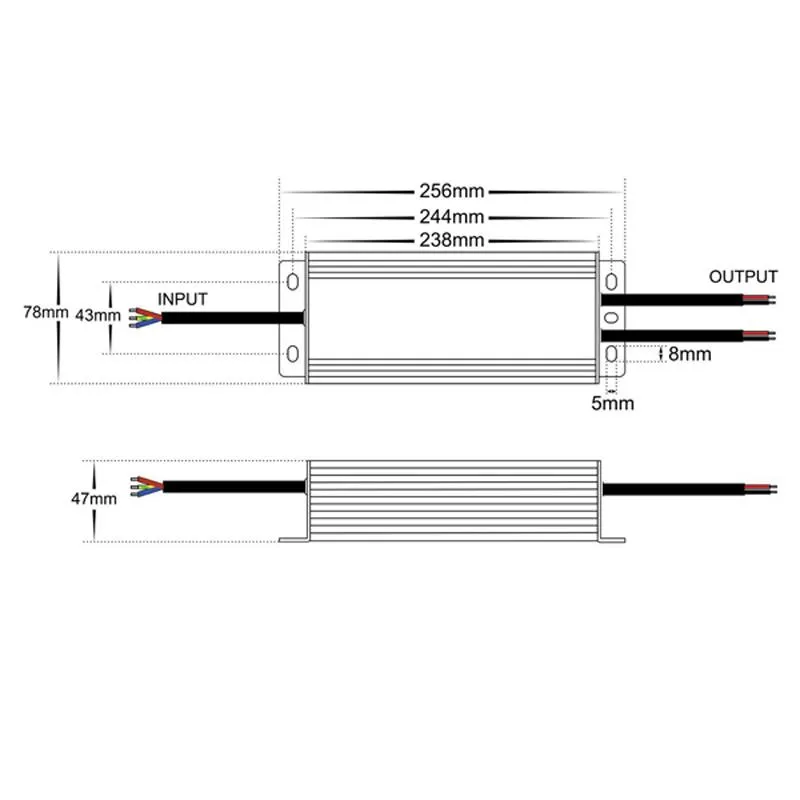

- Length: 265mm
- Width: 78mm
- Height: 47mm
Order Code:
- HV9660-12V150W - 12v 150w
- HV9660-24V150W - 24v 150w
